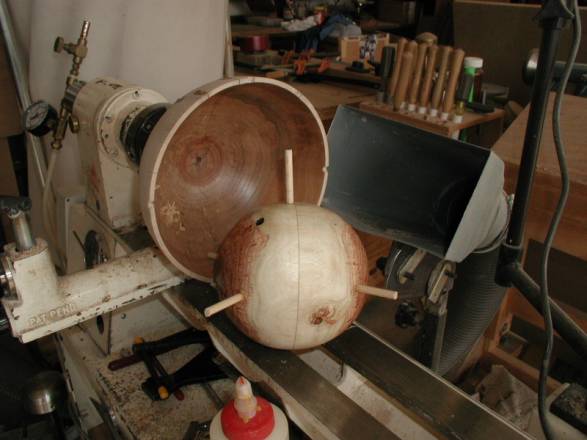

Putting smaller hollow ball in a larger hollow ball.



Home made drilling fixture for ¼” drill bit, use index on lathe.


 Small ball on vacuum system, drill 4 holes on centerline.


 Drill ¼” hole in tailstock end of the small hollow ball.


 Index and drill 4 holes on larger hollow ball on the centerline.


 Drill ¼” holes in both half’s of the larger hollow ball for dowels.


 Glue ¼” dowels in smaller hollow ball.


 Put glue only on one side of the dowels and in hole at headstock.


 Clamp both half’s together and let the glue to cure.


 Remove the tailstock half for drilling the last hole.

 Drill ¼” hole in the tailstock side of the small ball.


Glue last dowel in small ball and put in the headstock side.





 Apply small amount of glue all around, clamp together, let cure.

 Finish the same as for a normal hollow ball.

 Ball is finished, still being held by the vacuum drum chuck.

 The finished hollow ball setting on the Oneway 1018 lathe bed.


Completed project, 8” hollow ball Spalted Sycamore is the wood.
